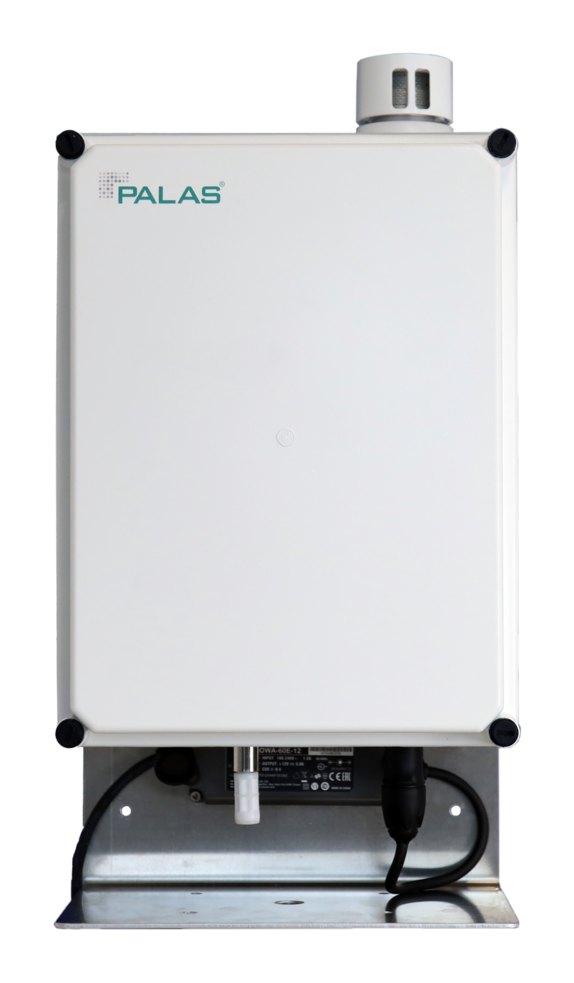

Palas AQ Guard Smart 1000
Compact, cloud-enabled fine dust monitor for outdoor air
The Palas® AQ Guard Smart 1000 is a compact, cloud-enabled air quality monitor designed for outdoor measurement in the smart city environment. It improves the granularity of monitoring networks while keeping high comparability with official measurements for environmental monitoring and health protection.
It works on 90-degree scattered light measurement on single particles, based on the EN 16450-certified Fidas® 200 technology. A heated inlet inside the housing switches on automatically depending on humidity and temperature, and temperature, humidity and pressure sensors are fitted as standard. The AQ Guard Smart 1000 has Ethernet, Wi-Fi and cellular connectivity, supports ASCII and Modbus, and records all data continuously for real-time and retrospective retrieval. It is MCERTS certified (Sira MC 220412/01).
Benefits

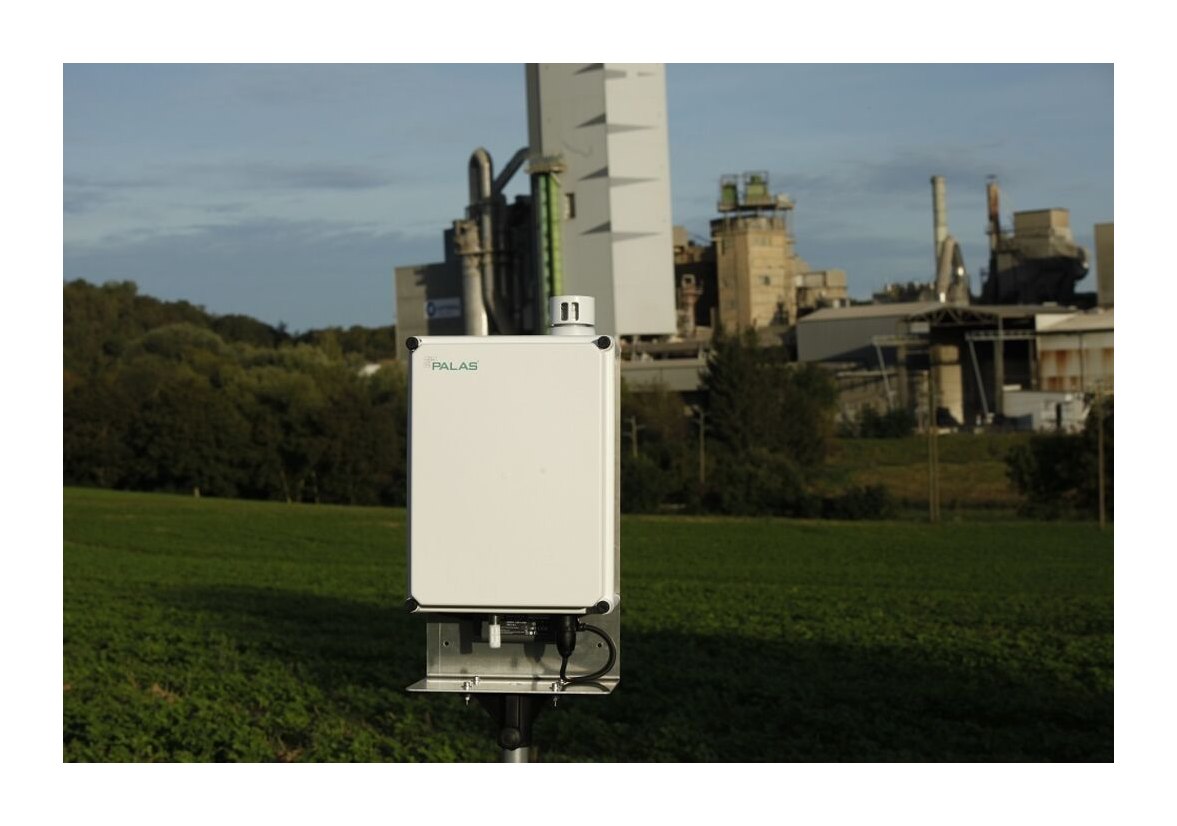

- Quick and easy installation, on a pole or tripod
- Long-term stability (24/7) and low maintenance
- Near-reference particle measurements
- Simultaneous measurement of PM1, PM2.5, PM4, PM10, TSP, particle number (CN) and CO2
- Suitable for high dust concentrations and demanding environments
- Real-time data with high time resolution
Options and accessories
- Multi-Gas Extension: adds NO2 and O3, with CO, NO and SO2 as options.
- MyAtmosphere: connection to the Palas cloud platform, with an optional API.
- Noise monitoring: optional Class 1 sound level meter (IEC 61672).
- Sunshade, weather station, touch panel and signal lamp for limit value alerts.
- LoRaWAN modem option.
Applications
- Urban air quality monitoring and smart city projects
- Open pit mining and landfills
- Construction sites
- Formation and dispersion studies
| Measuring principle | Optical light scattering at single particles |
|---|---|
| Reported data | PM1, PM2.5, PM4, PM10, TSP, CN, CO2; particle size distribution, ambient pressure, temperature and relative humidity |
| Measurement range (number) | 0 – 20,000 particles/cm³ |
| Measurement range (size) | 0.178 – 17.8 µm, 64 size channels |
| Measurement range (mass) | 0 – 100 mg/m³ (depending on aerosol composition) |
| Volume flow | 1 l/min ± 1.5% |
| Time resolution | 1 min (MyAtmosphere); every second via internal protocols |
| Interfaces and protocols | USB, Ethernet, Wi-Fi, 3G/4G, optional LoRaWAN; ASCII, Modbus, UDP |
| Power | 12 V supply; 1.2 A (1.7 A with heating) |
| Operating conditions | -20 – +50 °C |
| Dimensions and weight | 530 × 270 × 208 mm (H × W × D), approx. 6 kg |
| Certificates | ISO 21501-1, MCERTS (Sira MC 220412/01) |
